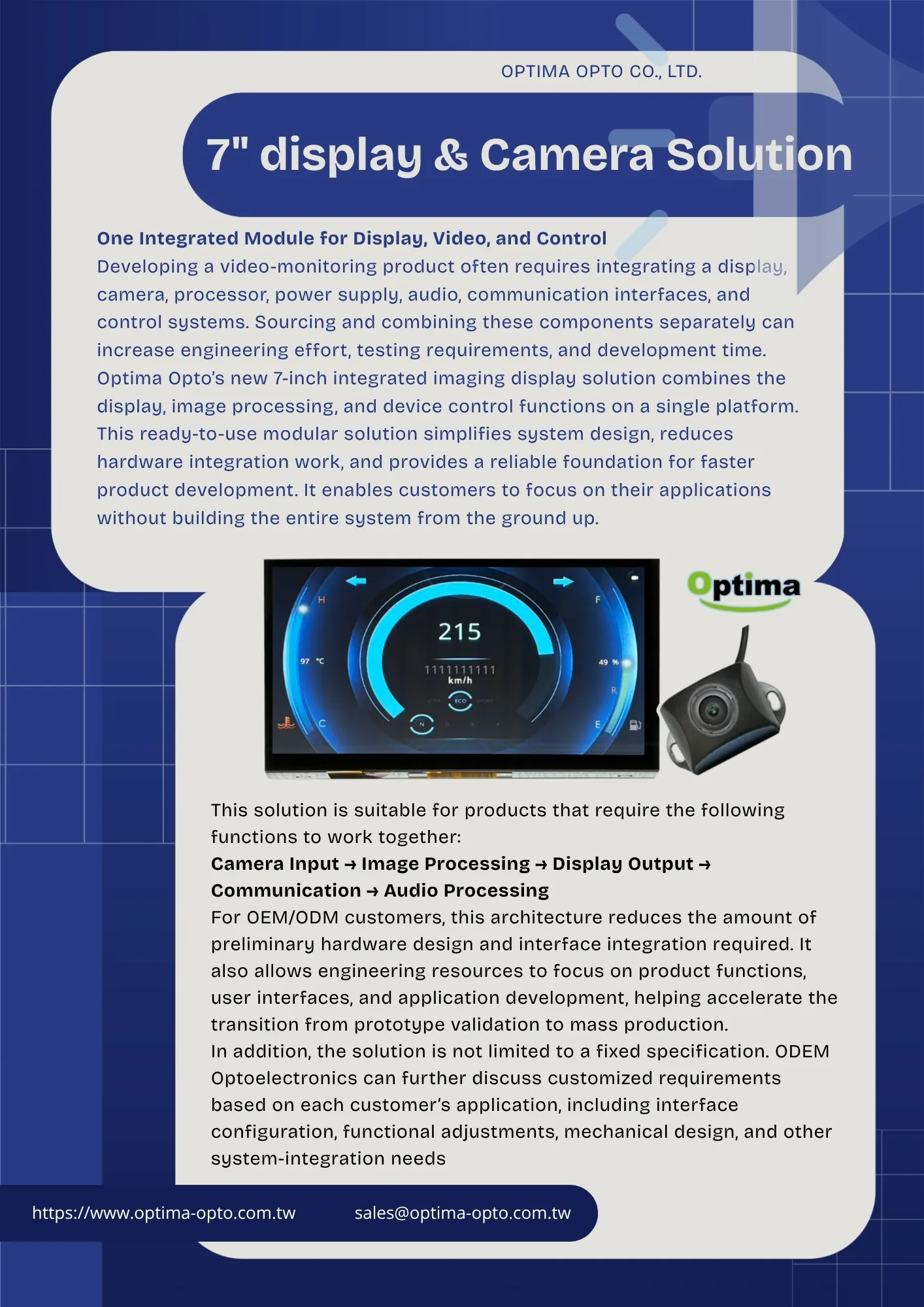

7 inch display and Camera Solution

One Integrated Module for Display, Video, and Control
Developing a video-monitoring product often requires integrating a display, camera, processor, power supply, audio, communication interfaces, and control systems. Sourcing and combining these components separately can increase engineering effort, testing requirements, and development time. Optima Opto’s new 7-inch integrated imaging display solution combines the display, image processing, and device control functions on a single platform. This ready-to-use modular solution simplifies system design, reduces hardware integration work, and provides a reliable foundation for faster product development. It enables customers to focus on their applications without building the entire system from the ground up.

This solution is suitable for products that require the following functions to work together:
Camera Input → Image Processing → Display Output → Communication → Audio Processing
For OEM/ODM customers, this architecture reduces the amount of preliminary hardware design and interface integration required. It also allows engineering resources to focus on product functions, user interfaces, and application development, helping accelerate the transition from prototype validation to mass production.
In addition, the solution is not limited to a fixed specification. ODEM Optoelectronics can further discuss customized requirements based on each customer’s application, including interface configuration, functional adjustments, mechanical design, and other system-integration needs.

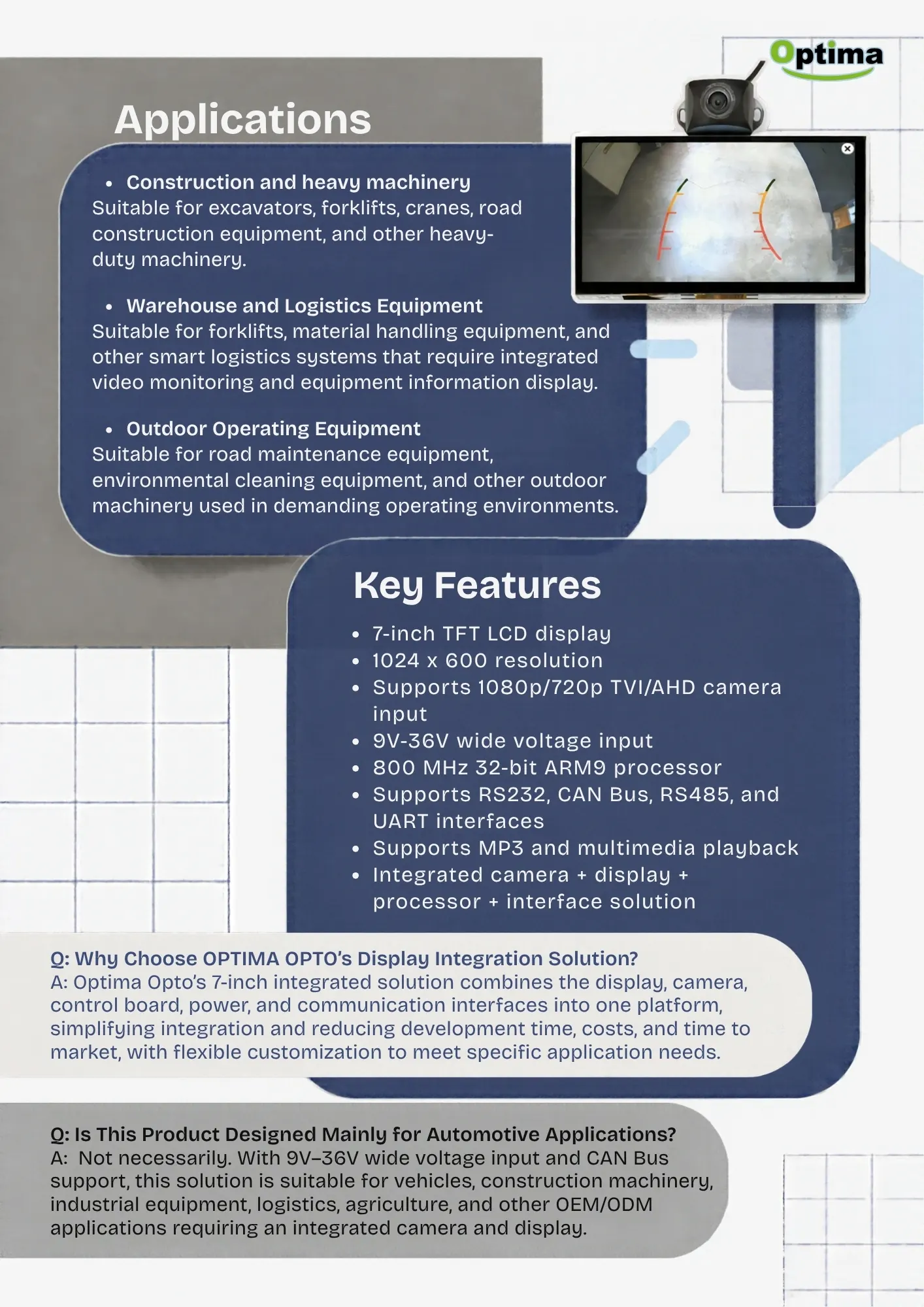

Applications

Construction and heavy machinery
Suitable for excavators, forklifts, cranes, road construction equipment, and other heavy-duty machinery.

Warehouse and Logistics Equipment
Suitable for forklifts, material handling equipment, and other smart logistics systems that require integrated video monitoring and equipment information display.

Outdoor Operating Equipment
Suitable for road maintenance equipment, environmental cleaning equipment, and other outdoor machinery used in demanding operating environments.

Key Features

• 7-inch TFT LCD display
• 1024 x 600 resolution
• Supports 1080p/720p TVI/AHD camera input
• 9V-36V wide voltage input
• 800 MHz 32-bit ARM9 processor
• Supports RS232, CAN Bus, RS485, and UART interfaces
• Supports MP3 and multimedia playback
• Integrated camera + display + processor + interface solution

Q: Why Choose OPTIMA OPTO’s Display Integration Solution?
A: Optima Opto’s 7-inch integrated solution combines the display, camera, control board, power, and communication interfaces into one platform, simplifying integration and reducing development time, costs, and time to market, with flexible customization to meet specific application needs.

Q: Is This Product Designed Mainly for Automotive Applications?
A:  Not necessarily. With 9V–36V wide voltage input and CAN Bus support, this solution is suitable for vehicles, construction machinery, industrial equipment, logistics, agriculture, and other OEM/ODM applications requiring an integrated camera and display.
