Rear view Display
Rear view Display

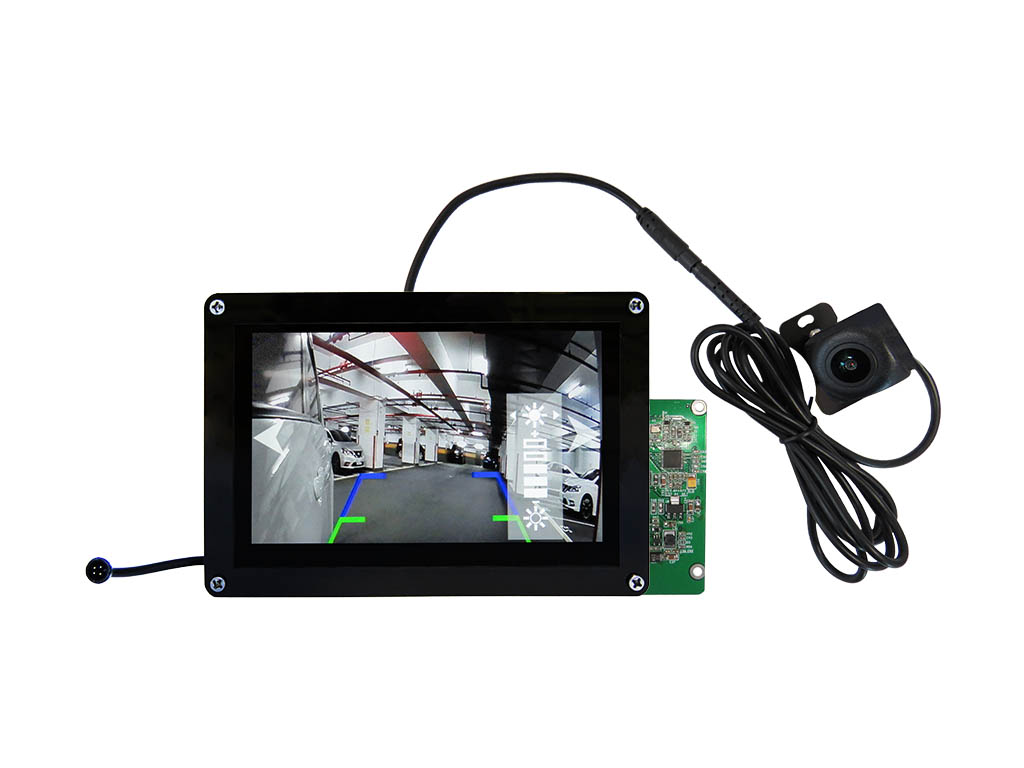

The 5-inch backup monitor supports a variety of video signal inputs, including NTSC, PAL, and AHD 720P/1080P. It also features a built-in On-Screen Display (OSD) for an intuitive user experience.
Equipped with a capacitive touchscreen and a UART communication interface, it facilitates user operation and integrated control, making it widely applicable for backup imaging, real-time video monitoring, and other visual signal display needs.
Equipped with a capacitive touchscreen and a UART communication interface, it facilitates user operation and integrated control, making it widely applicable for backup imaging, real-time video monitoring, and other visual signal display needs.
Product Features
The display supports TFT resolutions ranging from 480×272 to 1024×600, allowing for customized display effects based on different application scenarios. Upon request, integrated solutions combining a display with offline AI automatic lens recognition are also available to meet advanced image analysis and security monitoring needs.
The core purpose of developing this control board is to efficiently convert and output camera image signals to a display, enabling flexible application in various image conversion and video playback scenarios.
▪Display Resolution: 480x272~ 1024x600
▪Built In OSD (on-screen display menu)
▪UART interface
▪Capacitive Touch Panel
▪Customizability
